Plated Mineral Tanks

For standard resin systems
or filter systems
Specifications
Order Number
Plated Mineral Tanks brochure
nsf

Certified to
NSF/ANSI 44
NSF/ANSI/CAN 61
NSF/ANSI/CAN 372

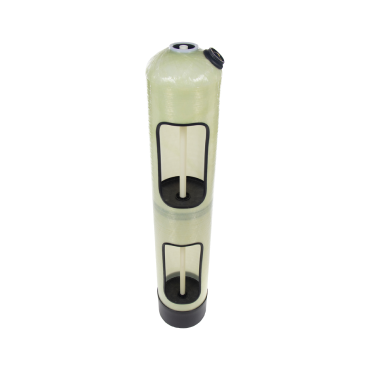

Clack Plated Mineral Tanks are made of high density polyethylene (HDPE) plastic with composite fiberglass filament winding over the liner. Clack’s design provides a glass filled polypropylene inlet for higher strength and pressure capabilities.

Made in The USA

Ask a Clack Pro

Features

  • Uniformity of .010 – .013 slot size for reduced pressure drop
  • Uniform flow in both downflow and upflow brining
  • Laser welded mid plate
  • Eliminates the need for a gravel support bed
  • The diameter of both the bottom and mid plates is equivalent to the the diameter of the tank, maximizing distribution through the entire media bed
  • Brine pick-up is directly from the bottom of the tank
  • Distributor riser tube with lock feature threads securely into bottom plate
  • Distributor riser tube is removable, but not to be reused due to lock mechanism being compromised. No special tools are needed to insert or remove distributor riser tube. No solvent used to assemble it.
  • All mineral tank liners are air tested before winding

Specifications

General
Capacities
Material Of Construction High density polyethylene (HDPE) plastic with composite fiberglass filament, glass filled polypropylene inlet
Distributor plates: glass reinforced plastic
Max Operating Pressure
Max Operating Temperature
Max Allowable Operating Vacuum
Warranty 10
Minimum burst at
Safety factor
Tested to
Colors
Fittings included
Optional

Ordering Information

* = Color code digit   A – Almond, B – Blue, C – Black, W – White.

Code Model QTY per carton
?  ? ?
