Certified to
NSF/ANSI/CAN 61
NSF/ANSI/CAN 372
IP54
IP55 with Weather Cover
Compatible with the following typical concentrations of regenerants or chemicals
Sodium chloride, potassium chloride, potassium permanganate, sodium bisulfite, chlorine and chloramines
Made in The USA
Models & features
Specification sheet

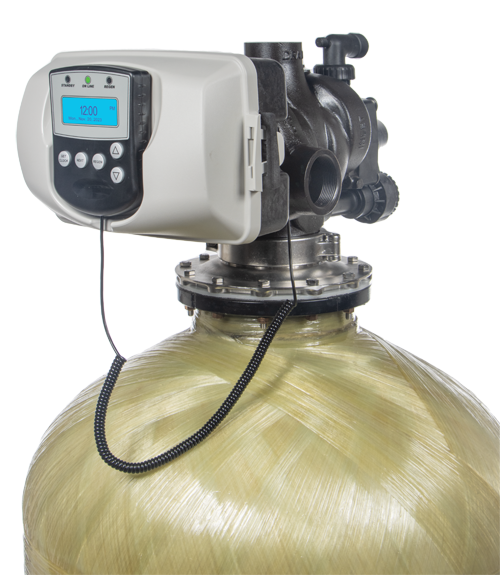

WS2HF Specification sheetFeatures and Benefits
- Control Valve Flow Rates: Service 165 gpm (624 lpm) (37 m3/h)
Backwash 175 gpm (662 lpm) (39 m3/h) - Epoxy coated lead free brass valve body
- Fully programmable regeneration cycle times and sequences (maximum 9)
- Network up to 16 valves using Cat5 cable or better
- Methods to initiate regeneration: Meter Delayed, Meter Immediate, Time Clock Delay, Auxiliary Input, Modbus Initiated
- Add up to 2 relay expansion boards to circuit board (sold separately)
- Top-mount or side-mount capabilities for commercial and industrial applications
- Programmable System types: Single, Alternating, Progressive Flow, Series
- Day override feature; 1-28 days or 7 day
- Blue backlight front display shows: Time and Date, Current Flow Rate, Volume Used, Volume Remaining, Days Remaining
- Diagnostics and history viewing
- Modbus RS485 duplex to communicate with building automation systems
- On-Site circuit board software update capability
- Reliable and proven DC drive
- One piece expanding seal spacer stack assembly
Specifications
| General | |
| Inlet/Outlet Fitting Connections | 2” Female NPT or BSPT |
| Cycles | up to 9 |
| Valve Material | Lead free brass |
| Regeneration | Downflow |
| Operating Pressures | 20 - 125 psi (1.4 - 8.6 bar) |
| Operating Temperatures | 40º - 110º F (4º - 43º C) |
| Options | Backwash Filter |
| FLow rates | |
|
Service @15 psi drop |
125 gpm (473 lpm) (28.4 m3 /h) |
|
Backwash @25 psi drop |
125 gpm (473 lpm) (28.4 m3 /h) |
| Cv Service | 32.3 |
| Cv Backwash | 25.0 |
| Tank applications | |
| Water Softener | 18” - 63" diameter |
| Water Filter | 18” - 48" diameter |
| Meter |
| Accuracy |
| Flow Rate Range |
| Gallon Range |
| Totalizer |
| Dimensions & Weight | |
| Distributor Pilot | Valve Bodies with 2" Female NPT Inlet & Outlet - 2.375” OD (2" NPS) Valve Bodies with 2" Female BSPT Inlet & Outlet - 63mm OD |
| Drain Line | 2” Female NPT/BSPT/2.5” Groove Lock |
|
Brine Line |
1” Male NPT elbow ¾” x 1” solvent weld elbow Optional Adapters - 1/2” or 5/8" OD Poly Tube Compression |
| Mounting Base | 4" - 8 UN, 6” Flange or Side Mount |
| Height From Top Of Tank | With 4" - 8 UN QC Base - 11.5” (292mm) With 6" Flange QC Base - 11.6” (294.6mm) |
| Weight | 50 lbs (22.7 Kg) |
| Cycles of Operation Minutes |
|
| Backwash 1st (upflow) | 1 - 95 |
| Regenerate Draw/Slow Rinse (downflow) | 1-180 / 1-95 |
| Backwash 2nd (upflow) | |
| Fast Rinse (downflow) | 1-95 |
| Regenerant Refill in service with treated water |
0.1 - 99 |
| Service (downflow) | |
| Hold (service) | 1 - 480 |
| Electrical Specifications All models excluding WS1.25SD |
US Power Supply | International Power Supply |
| Supply Voltage | 120VAC | 240VAC |
| Supply Frequency | 60 Hz | 60 Hz |
| Output Voltage | 24VDC | 24VDC |
| Output Current | 800 mA | 800 mA |
| Battery Specifications |
| Battery |
| Charging |
